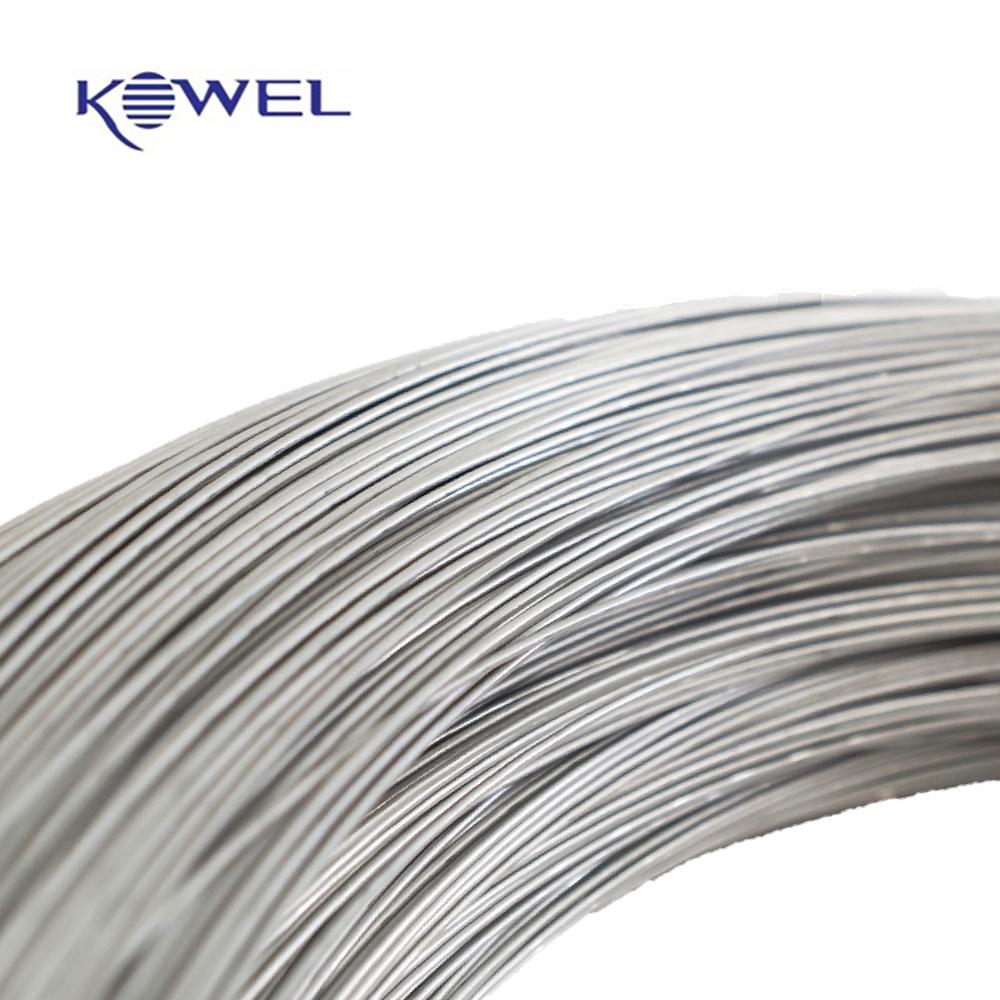

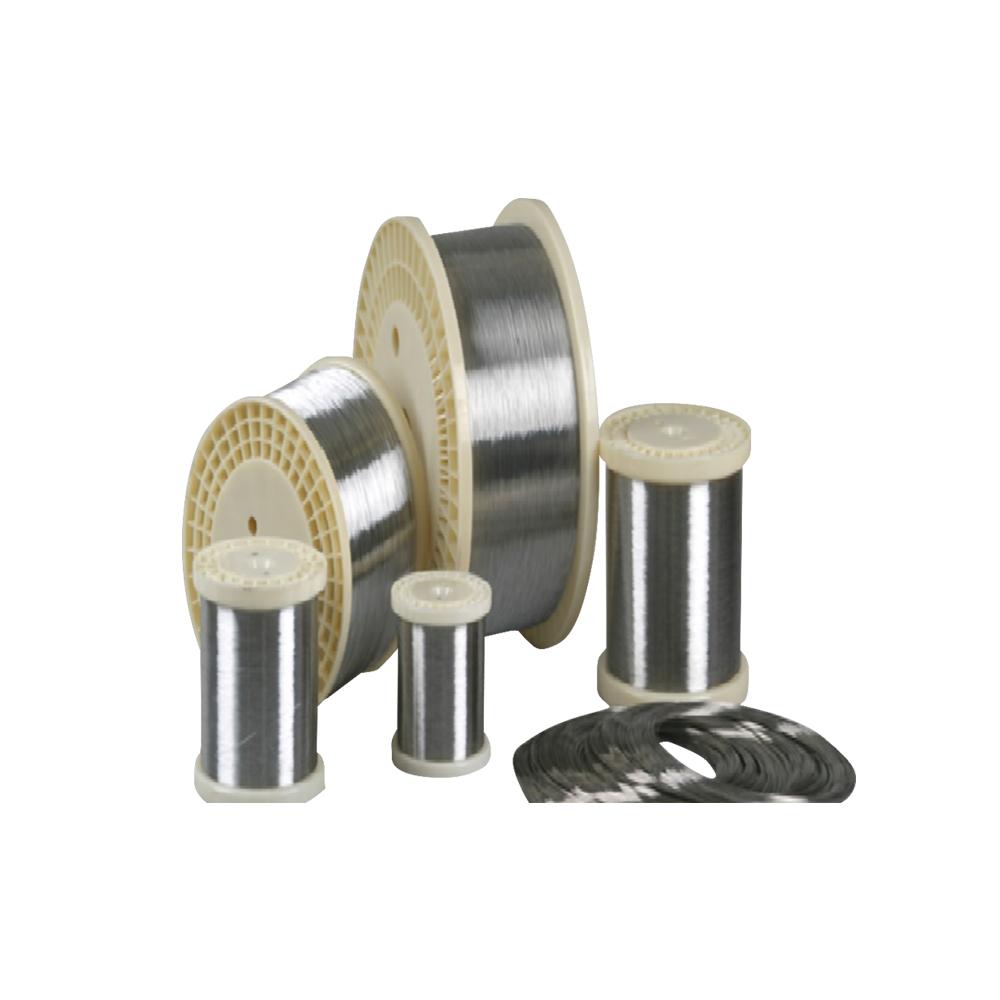

STAINLESS STEEL WIRE

Payment

T/T
MOQ

Negotiable
Country of sale

Asia, Americas, Europe, Middle East, World Wide
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

KOWEL

Model STAINLESS STEEL WIRE
origin

Republic of Korea
Size(Capacity)

Depending on the requirements
Material

AISI 304, 316, 304J3, 304Cu, and others
Weight

Depending on the packing specification

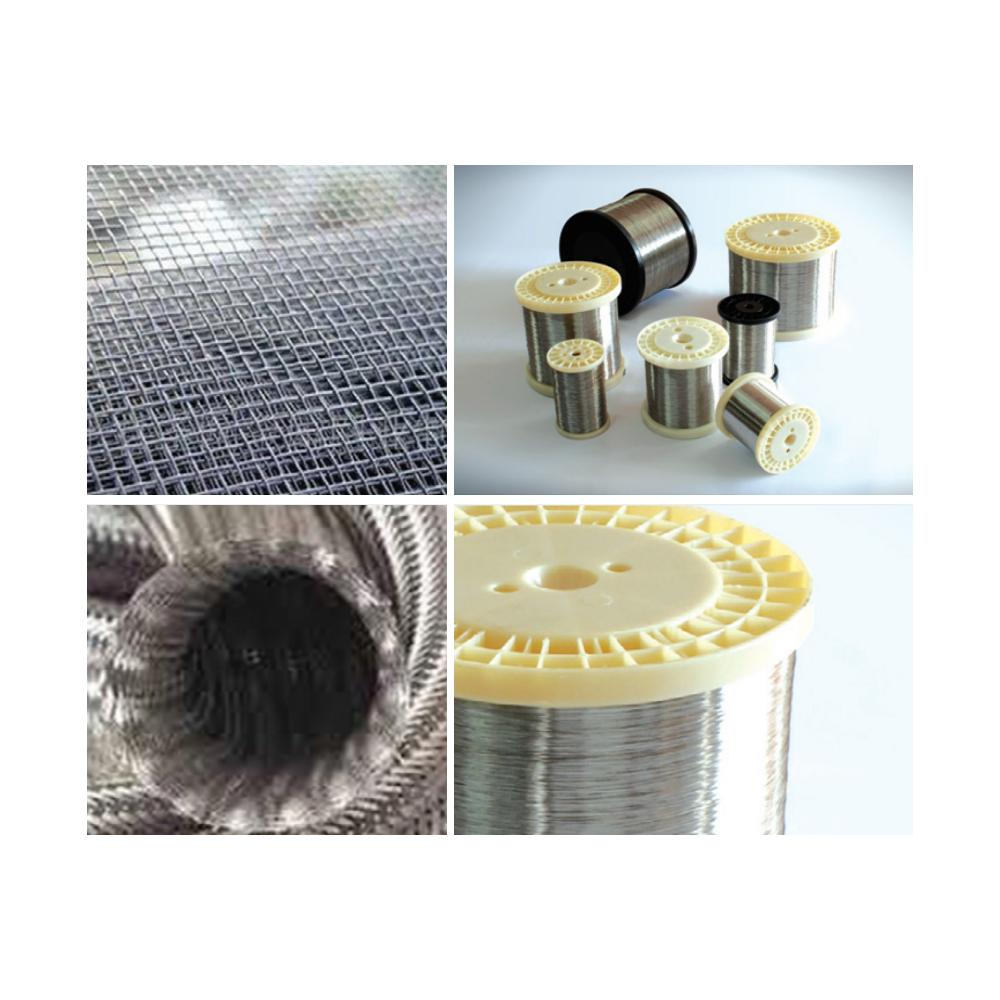

PRODUCT DESCRIPTION

[Mesh Belt Wires]
AISI 304 wire is suitable for normal Mesh belt wires.
AISI 314, 310 S is the thermal steel, applying especially for heat treating furnace.
Forging machinability of heat resisting steel wire is superior due to exclusive coating.

Specification
Grade Dia(㎜) T/S(N/㎟) Heat Resisting Chemical component
AISI 314 1.60 ~ 5.30 600 ~ 750 1,150℃ Cr24 Ni19 Si2
AISI 310S 1.60 ~ 5.30 500 ~ 650 1,090℃ Cr24 Ni19 Si-
AISI 304 1.60 ~ 5.30 550 ~ 700 - Cr18 Ni 8 Si-

[Free-Cutting Wires]
Strict control in chemical properties of AISI 303 series for better machinability.
Optimum straightness and roundness in cut-length.
Dimensional accuracy can be obtained by centerless grinding.

Specification (AISI 303C, 303F)
Dia(㎜) Soft 1/4H
T/S (N/㎟) T/S (N/㎟)
0.80 ~ 1.60 580 ~ 830 800 ~ 1100
1.61 ~ 3.00 540 ~ 780 780 ~ 1050
3.01 ~ 5.00 500 ~ 750 750 ~ 1000
5.01 ~ 12.0 - 700 ~ 950

[NailManufacturing Wires]
Strict control in hardness according to various constructional applications.
Excellent workability with uniform coating.

Specification (AISI 304, 316, 304J3)
Dia(㎜) Tolerance(㎜) 1/8H 1/4H
T/S (N/㎟) T/S (N/㎟)
1.20 ~ 2.00 ± 0.015 780 ~ 980 930 ~ 1150
2.01 ~ 3.00 ± 0.020 780 ~ 980 900 ~ 1100
3.01 ~ 5.00 ± 0.025 730 ~ 930 880 ~ 1050
5.01 ~ 7.00 ± 0.030 680 ~ 880 830 ~ 950

[Super-Hard & Non-Magnetic Wires]
Super Hard (Super hardness up to Hv500 by cold drawing.
Non-Magnetic & Anti-Corrosive SHAFT purpose.

Specification (AISI 416, 420J2, 420F AISI 202M)
Dia(㎜) 1/4H 1/2H F/H
T/S (N/㎟) T/S (N/㎟) T/S (N/㎟)
0.80 ~ 3.00 - 1400 ~ 1650 1750 ~ 2000
3.20 ~ 4.00 950 ~ 1200 1300 ~ 1550 1450 ~ 1950
4.01 ~ 6.50 900 ~ 1100 1200 ~ 1450 -
6.51 ~ 12.0 900 ~ 1050 1100 ~ 1350 -

[EPQ(Electro-polishing Quality) Wires]
Brilliant surface condition and various exterior appliances & kitchen utensils.

Specification ( AISI 304, 316 )
Dia(mm) 1/4H 3/4H
Tolerance(㎜) T/S (N/㎟) Tolerance(㎜) T/S (N/㎟)
1.00~ 1.40 ± 0.015 950 ~ 1150 ± 0.015 1500 ~ 1750
1.50~ 1.80 950 ~ 1150 ± 0.015 1450 ~ 1700
2.00 ~ 2.60 ± 0.020 900 ~ 1100 ± 0.020 1400 ~ 1650
2.80 ~ 3.50 900 ~ 1100 ± 0.025 1300 ~ 1500
4.00 ~ 7.00 ± 0.030 850 ~ 1000 - -

[Cold Heading Quality Wires]
Strict control of chemical property according to final application,

Uniform quality through stable and proper coating for various&high speed usages.

Specification (Surface: Matt, Bright, S-Co)
Dia(mm) WSA WSB
Grade T/S (N/㎟) T/S (N/㎟)
WSA 304 550 ~ 650 570 ~ 700
0.80 ~ 5.25 316 550 ~ 650 570 ~ 700
WSB 304J3 500 ~ 650 520 ~ 700
0.80 ~ 12.0 304Cu 460 ~ 600 460 ~ 650

[Spring Wires]
High tensile strength and Excellent anti-corrosion with uniform coiling condition suitable for various applications.

Specification – Tensile Strength

Dia(㎜) WPA WPB WPB 1/2H(SP’T) -
AISI 302, 304, 316 AISI 302, 304 INCONEL 718 X-750 KW-60
T/S (N/㎟) T/S (N/㎟) T/S (N/㎟) T/S (N/㎟) T/S (N/㎟)
0.15 ~ 0.20 1650 ~ 1900 2150 ~ 2400 - - -
0.23 ~ 0.40 1600 ~ 1850 2050 ~ 2300 - - -
0.45 ~ 0.60 1600 ~ 1850 1950 ~ 2200 - - -
0.65 ~ 1.00 1530 ~ 1780 1850 ~ 2100 - - -
1.20 ~ 1.40 1450 ~ 1700 1750 ~ 2000 - 1400~1550 -
1.60 ~ 2.00 1400 ~ 1650 1650 ~ 1900 1550 ~ 1750 1400~1550 1150 ~ 1300
2.30 ~ 2.60 1320 ~ 1570 1550 ~ 1800 1550 ~ 1750 1400~1550 1150 ~ 1300
2.90 ~ 3.50 1230 ~ 1480 1450 ~ 1700 - 1400~1550 -

Specification – Tolerance, Ovality, CAST, Helix

(Surface: Matt(S-Co)& Bringht, CAST(㎜: coil diameter * (1.5~2)multiple Max. 20 )
Dia(mm) Tolerance(㎜) Diametrical variation(㎜) Helix(㎜)
0.15 ~ 0.20 +0/-0.004 0.003 under Max. 20
0.21 ~ 0.50 +0/-0.007 0.004 under Max. 20
0.51 ~ 0.90 +0/-0.010 0.005 under Max. 20
0.91 ~ 1.80 +0/-0.014 0.007 under Max. 15
1.81 ~ 3.20 +0/-0.020 0.010 under Max. 15
3.21 ~ +0/-0.025 0.013 under Max. 15

[Annealed Wires]
Shiny surface condition and strictly controlled mechanical properties according to final application.

Specification for soft Annealed Wires

AISI 304, 316, 316Ti, 309S AISI 304L, 316L, 321
Dia(㎜) T/S(N/㎟) Elongation(%) Dia(㎜) T/S(N/㎟) Elongation(%)
0.10~0.22 Max 830 Min 30 0.10~0.22 Max 860 Min 30
0.23~0.37 Max 830 Min 35 0.23~0.37 Max 780 Min 30
0.38~0.50 Max 810 Min 35 0.38~0.50 Max 760 Min 35
0.51~0.70 Max 810 Min 35 0.51~0.70 Max 730 Min 35

Specification for Hard(F/H) Drawn Wires

AISI 302, 304, 316, 316Ti AISI 304L, 316L
Dia(㎜) T/S(N/㎟) Dia(㎜) T/S(N/㎟)
0.10~0.19 2100~2400 0.10~0.31 1850~2050
0.20~0.31 2050~2300 0.32~0.44 1750~1950
0.32~0.44 2000~2250 0.45~0.60 1650~1850
0.45~0.60 1950~2200

Standardization and packing specifications for special packages can be changed according to customer request, and can be ordered separately.

Packing

Wire Cond Dia(mm) Unit package Innerside Packing Outerside Packing
Soft 0.10 ~ 0.14 DIN 100 Spool Carton Box Cardboard Box
0.15 ~ 0.18 DIN 125 Spool or
0.19 ~ 0.35 DIN 160 Spool Wooden Case
DIN 200 Spool
DIN 250 Spool
DIN 355 Spool
0.71 ~ 1.99 12” 16” 24” Coil/Pail P.P Cloth Cardboard Box
2.00 ~ 5.25 24” Coil/Carrier Bundle with P.P Cloth

Wire Cond Dia(mm) Unit package Innerside Packing Outerside Packing
Hard 0.10 ~ 0.30 DIN 100 Spool Carton Box Cardboard Box
0.30 ~ 0.60 DIN 125 Spool Wooden Case
DIN 160 Spool
DIN 200 Spool
DIN 250 Spool
DIN 355 Spool
0.61 ~ 0.99 8” 10” 12” Coil P.P Cloth Cardboard Box
1.00 ~ 1.99 12” 14” 18” 24” Coil P.P Cloth Cardboard Box
2.00 ~ 15.00 24” 32” Coil/Carrier Bundle with P.P Cloth

Packing specifications can be changed according to customer request.
